RHD Recording System | RHD记录系统

RHD 录制系统配备 USB 接口和开源软件，支持用户观察和记录多达 1024 个来自多个 RHD 头载放大器的信号。



一个完整的录制系统至少需要以下组件：录制控制器或 USB 接口板、SPI 接口线以及 RHD 头载放大器。


产品型号

产品名称 型号 货期 单价
RHD记录系统 C3004 C3008 E6500 C3100 系列 2-4周 折扣价
RHD （intal）系列的头载板 C3334 C3335 C3314 C3324 C3315 C3325 C3316 C3180系列 2-4周 折扣价
RHS Stim/Recording 系统 M4200 E6500系列 2-4周 折扣价
RHS (intal）头架 M4016 M4032系列 2-4周 折扣价

产品描述

RHD Recording System

RHD 记录系统具有 USB 接口和开源软件，允许用户从多个 RHD 头载板观察和记录最多 1024 个信号。一个可正常运行的记录系统至少需要以下组件：记录控制器或 USB 接口板、SPI 接口线和 RHD 头载板。

注意：RHD 记录系统无法使用 RHS stim/recording Headstages 或 RHS 接口电缆。RHD 和 RHS 系统不兼容。

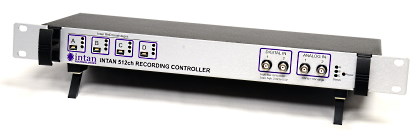

Intan RHD Recording Controller


Part #
Recording Controllers
connect to computer via USB cable
C3004RHD 512-channel recording controller
includes USB cable and power cable
C3008RHD 1024-channel recording controller
includes USB cable and power cable
E6500I/O expander
for use with controller; includes interface cable
C3100RHD USB interface board
DISCONTINUED Feb. 2022 due to supply chain issues


Intan RHD SPI interface cables



Part #
Cables
connect RHD headstages to controller
C3203RHD 3-ft (0.9 m) standard SPI interface cable
C3206RHD 6-ft (1.8 m) standard SPI interface cable
C3211RHD 1-ft (0.3 m) ultra thin SPI interface cable
C3213RHD 3-ft (0.9 m) ultra thin SPI interface cable
C3216RHD 6-ft (1.8 m) ultra thin SPI interface cable
C3442RHD dual headstage adapter
compatible with 16ch – 64ch RHD headstages
C3430SPI cable adapter board
for interfacing with commutators or custom hardware
Part #
Software

—RHX data acquisition GUI
written in C++/Qt; open source

Intan LVDS adapter board


Part #
Hardware Development Tools

C3490LVDS adapter board
for custom hardware development

Intan RHD Headstages


Part #
RHD Headstages
headstages include Intan chip
C3334RHD 16-channel headstage
18-pin Omnetics electrode connector
C3335RHD 16-channel headstage with accelerometer
18-pin Omnetics electrode connector
C3314RHD 32-channel headstage
36-pin Omnetics electrode connector
C3324RHD 32-channel headstage with accelerometer
36-pin Omnetics electrode connector
C3315RHD 64-channel headstage
2x 36-pin Omnetics electrode connectors
C3325RHD 64-channel headstage with accelerometer
2x 36-pin Omnetics electrode connector
C3316RHD 128-channel headstage
2x 64-pin Molex electrode connectors
C3180RHD electroplating board
DISCONTINUED Feb. 2022 due to supply chain issues

Intan RHD bipolar-input headstages


Part #
RHD Headstages for EMG
headstages include Intan chip
C3313RHD 16-channel bipolar-input headstage for EMG
36-pin Omnetics electrode connector
C3323RHD 16-channel bipolar-input headstage with accelerometer for EMG
36-pin Omnetics electrode connector

Intan Electrode Adapters



Part #
Adapters
connect headstages to custom electrodes
C341036-pin electrode adapter board
for headstages with 36-pin connector
C341818-pin electrode adapter board
for headstages with 18-pin connector
C342036-pin wire adapter
for headstages with 36-pin connector
B760018-pin wire adapter
for headstages with 18-pin connector



RHS Stimulation/Recording System

RHS 刺激/记录系统具有 USB 接口和开源软件，允许用户从多个 RHS 头载板进行刺激和记录，最多可支持 128 个信号。一个可正常运行的 RHS 系统至少需要以下组件：刺激/记录控制器、Stim SPI 接口线和 RHS 头载板。

注意： RHS 刺激/记录系统无法使用 RHD 记录头载板或 RHD 接口线。RHD 和 RHS 系统不兼容。此外，RHS 头载板无法与 Open Ephys 系统配合使用。

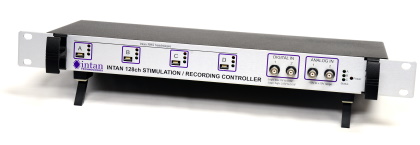

Intan RHS Stim/Recording Controller
Part #
Stimulation/Recording Controller
connects to computer via USB cable
M4200RHS 128-channel stimulation/recording controller
includes USB cable and power cable
E6500I/O expander
for use with controller; includes interface cable
Intan RHS Stim SPI interface cables
Part #
Cables
connect RHS headstages to controller
M4563RHS 3-ft (0.9 m) Stim SPI interface cable
(formerly part number M3203)
M4566RHS 6-ft (1.8 m) Stim SPI interface cable
(formerly part number M3206)
M4430Stim SPI cable adapter board
for interfacing with commutators or custom hardware
Part #
Software

—RHX data acquisition GUI
written in C++/Qt; open source
Intan LVDS adapter board
Part #
Hardware Development Tools

C3490LVDS adapter board
for custom hardware development
Intan RHS Headstage
Part #
RHS Headstages
headstages include Intan chip
M4016RHS 16-channel stim/record headstage
18-pin Omnetics electrode connector
M4032RHS 32-channel stim/record headstage
36-pin Omnetics electrode connector
Intan Electrode Adapters
Part #
Adapters
connect headstages to custom electrodes
C341036-pin electrode adapter board
for headstages with 36-pin connector
C341818-pin electrode adapter board
for headstages with 18-pin connector
C342036-pin wire adapter
for headstages with 36-pin connector
B760018-pin wire adapter
for headstages with 18-pin connector


RHD Amplifier Chips

微芯片可以以封装形式（QFN 或 BGA）购买，用于焊接到印刷电路板上，或者以裸硅晶圆（裸片）形式购买，以进行引线键合。对于大多数应用，推荐使用封装芯片。

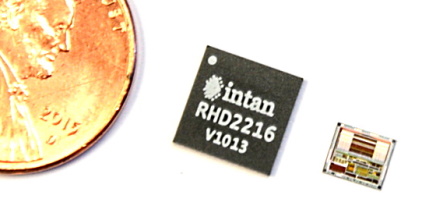

RHD2216 16-channel amplifier chip

with digital SPI bus, bipolar amplifier inputs

RHD2132 32-channel amplifier chip

with digital SPI bus, unipolar amplifier inputs

QFN chip
Part #D8213

bare die
Part #P8003

QFN chip
  Part #D8214

bare die
Part #P8004




RHD2132 32-channel amplifier chip

with digital SPI bus, unipolar amplifier inputs

BGA chip
Part #D8215

bare die
Part #P8005



RHA Analog-Output Amplifier Chips

微芯片可以以封装形式（QFN）购买，用于焊接到印刷电路板上，或者以裸硅晶圆（裸片）形式购买，以进行引线键合。对于大多数应用，推荐使用封装芯片。



RHA2116 16-channel amplifier chip

with multiplexed analog output, unipolar amp inputs

RHA2216 16-channel amplifier chip

with multiplexed analog output, bipolar amp inputs

QFN chip
Part #A6112

bare die
Part #K6002

QFN chip
  Part #A6113

bare die
Part #K6003


RHA2132 32-channel amplifier chip

with multiplexed analog output, unipolar amp inputs

BGA chip
Part #A6114

bare die
Part #K6004


Intan RHS Stim/Amplifier Chips

微芯片可以以封装形式（QFN）购买，用于焊接到印刷电路板上，或者以裸硅晶圆（裸片）形式购买，以进行引线键合。对于大多数应用，推荐使用封装芯片。


RHS2116 16-channel stim/amp chip

with digital SPI bus, constant-current stimulators

QFN chip
  Part #D5716

bare die
Part #P5016
